Control Panels

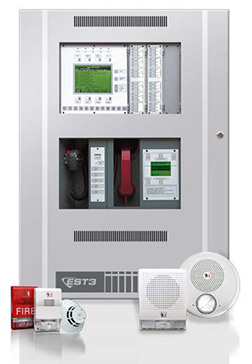

EST3 Base Platform With Signature Series Fire Alarm
(EST 3 Panel: 1 Loop – 20+ Loops)

EST3 is a modular control platform uniquely designed to meet the needs of applications ranging from standalone single panelfire alarm systems to multi-panel networks with unified fire alarm, security, access control and Mass Notification functions.

Standard Features

  • Listed for Mass Notification/Emergency Communication, Fire, Security, Access Control, and Emergency Voice Alarm
  • 168-character LCD
  • Network supports copper, multi-mode fiber, single-mode fiber,or a combination of all three
  • Total network wiring over 160,000 feet
  • Eight channels of multiplexed digital audio on a single pair ofwires or fiber filament
  • Supports Edwards Signature Series detectors and modules
  • Designed in accordance with ISO-9000 quality standards
  • UL864 Ninth Edition Listed | UL2572 Listed for Mass Notification

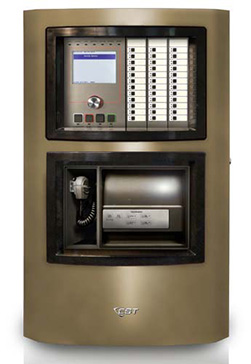

EST3X Life Safety Control System
(EST 3X Panels: 1 Loop – 6 Loops)

EST3X represents the latest generation of life safety control panelsfor mid to large sized applications. With large multi-message displays and innovative controls, intuitive interfaces, and bold colored cabinets — these systems capture the imagination, and catch the eye.

Standard Features

  • Up to six intelligent analog loops hosting as many as 1,500 Signature Series devices per panel
  • Optional integrated eight-channel digital audio
  • 10 amp power supply with universal 94 to 264 Vacinput voltage
  • Large 24-line by 40-character backlit LCD
  • 65 amp hour battery charger
  • Eight- or 64-node network nodes using copper and/or fiber
  • Supports up to 30 R-Series remote annunciators
  • 1,100 event history log

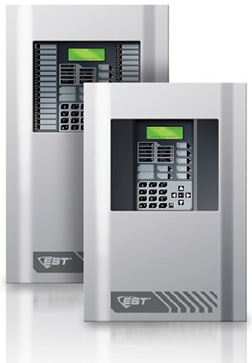

IO-Series Intelligent Life Safety System
(IO64 | I01000)

Big system performance for small building applications. EDWARDS brand intelligent life safety systems offer the power of high-end intelligent processing in configurations that deliver uncomplicated solutions for small to mid-sized applications. With intelligent detection, electronic addressing, automatic device mapping, optional Ethernet® connectivity, and a full line of easily-configured option cards and modules, these flexible systems offer versatility that benefits building owners and contractors alike.

IO64 - The iO64 provides one Class B intelligent device loop that supports up to 64 device addresses, and two Class B Notification Appliance Circuits (NACs). Optional Class A device wiring is availablewith the use of a module.

IO1000 - provides one Class A or Class B intelligent device loop that supports up to 250 device addresses. Loop controller modules may be added in combination to expand total system capacity in 250-point increments to up to 1,000 device addresses. The iO1000 panel includes four NACs that may be wired for either Class A or Class B operation.

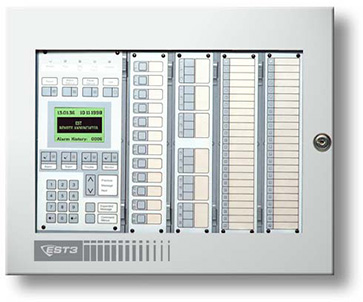

EST3 Remote Annunciation

Use EST3 remote annunciators when a compact system status display is needed.
Annunciator configurations include LCD only display | LED only displays |combination LED & LCD display in a single enclosure.
Includes standard 3-LCD (168 characters) and large-format 3-LCDXL1(960 character) display options.

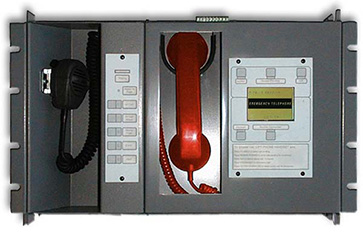

Audio and Telephone Masters (3-ASU series)

The 3-ASU is seamlessly integrated into an EST3 system to provide for a rugged and reliable communications package that canbe configured for Mass Notification/Emergency Communication(MNEC), as well as fire alarm and other emergency functions.
The3-ASU audio source unit supports eight channels of clear digitalaudio that is easily distributed to panels containing 3-ZA rail amplifiers.

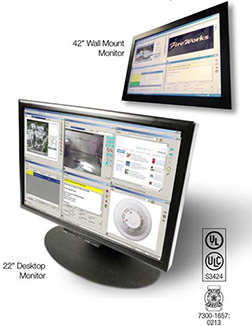

Fireworks: Graphical Command Interface Application & Operation

FireWorks™ is a powerful family of software and hardware options that work in concert with Edwards Mass Notification/Emergency Communication (MNEC), Life Safety and Property Protection systems.
FireWorks provides an intuitive user interface, taking what could be an overwhelmingly large amount of information and presenting it in an easy-to-understand format.

EST3 Central Processor Unit
3-CPU3, 3-RS485A, 3-RS485B, 3-RS232

The 3-CPU3 is the Central Processing Unit Module monitoring the status of all modules and providing the link for network communications.
Although each local rail card contains their own microprocessor, the 3-CPU3 provides all inter-module communication and has the ability to download rail module operating parameters.

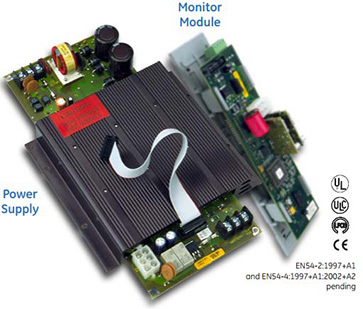

EST3 Power Supply
3-PPS/M Series

The primary power supply provides the system with battery charging and voltage regulation.
Software configures the charger to either 10-24 AH batteries or 30-65 AH batteries and controls the high/low charge rates.
